Lattice: Design Intent Chain for Auto Round
Creo+
User Interface Location: Click > >
Lattice.
Lattice.Videos
Description
The Lattice feature has been enhanced to automatically create a design intent chain between the lattice geometry and its boundary or shell. The intent chain can be used to create Auto Round or Round features.
The intent chain is created for
Beams,
2.5D, or
Custom lattice types. The lattice must use Full geometry representation. The lattice and the boundary or shell must be part of the same body.
Beams, 2.5D, or Custom lattice types. The lattice must use Full geometry representation. The lattice and the boundary or shell must be part of the same body.The intent chain is created when you complete the Lattice feature. You use the intent chain to create Round or Auto Round features after the lattice feature is completed. Since the features are outside of the Lattice feature, the rounds can be suppressed when not needed, to improve performance.
Benefits

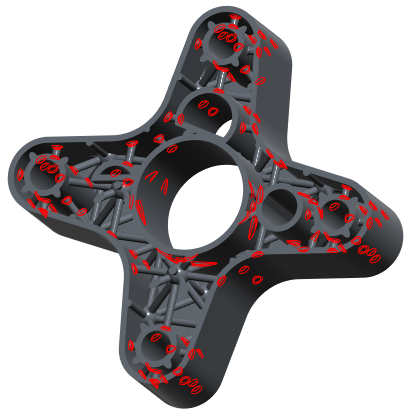

Easily create Auto Round or Round features between the lattice geometry and its boundary or shell using the automatically-created intent chain.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
