Lattice: Randomization Setting for Stochastic Lattice
Creo+
User Interface Location: Click >
Lattice > >
Stochastic.
Lattice > > Stochastic.Videos
Description
11 contains a new Randomization seed value setting for stochastic lattice. This functionality now allows you to create a family of parts containing stochastic lattices using family tables. Each stochastic lattice instance can be randomized independently.
Previously, when a part in a family table containing a stochastic lattice was randomized, all other instances got randomized.

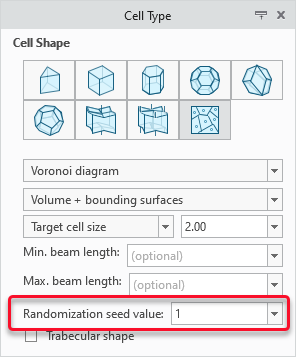

• Display the randomization seed value of a stochastic lattice while editing or defining the lattice

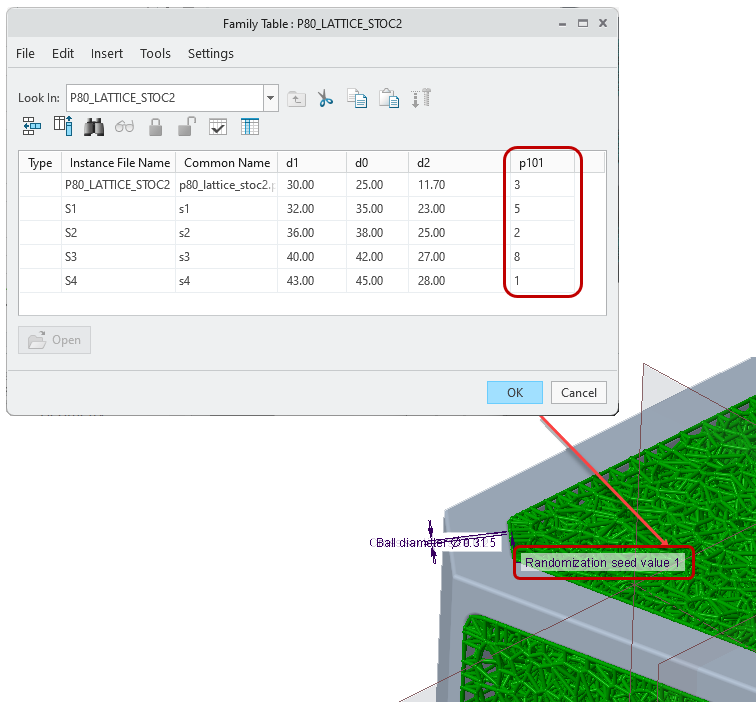

• Dimension available for family tables to display instances of stochastic lattice that vary by their randomization setting
• Randomize each stochastic lattice instance independently
Benefits
• Each stochastic lattice in the family table can be randomized separately
• More clarity defining stochastic lattices
• Simple to use
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
