Lattice: Simplified Beam Lattices Adjust along the Warp Feature
Creo+
User Interface Location: Click >
Lattice > > > > .
Lattice > > > > .Videos
Description
You can now modify a part that contains simplified beam lattices using the Warp feature. The internal lattice beams will adjust accordingly.

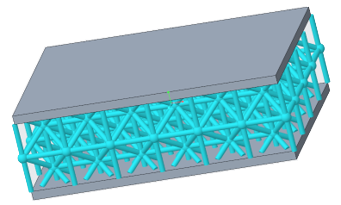

Original part that contains lattice:

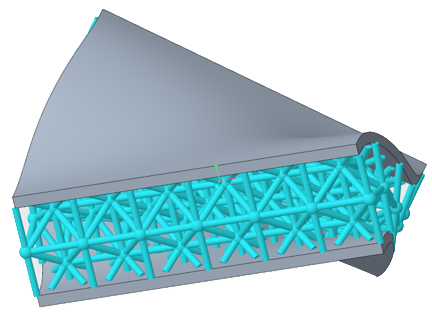

Part modified by Warp feature:
Benefits
• More flexibility to create lattices that follow complex shapes
• Simplified lattices can be used in more use cases
• Faster simulation by using simplified lattices
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
