Welding: xMCF Export Expanded for Spot Welds
Creo+
User Interface Location: Click >
Welding > >
Export > > .
Welding > > Export > > .Description

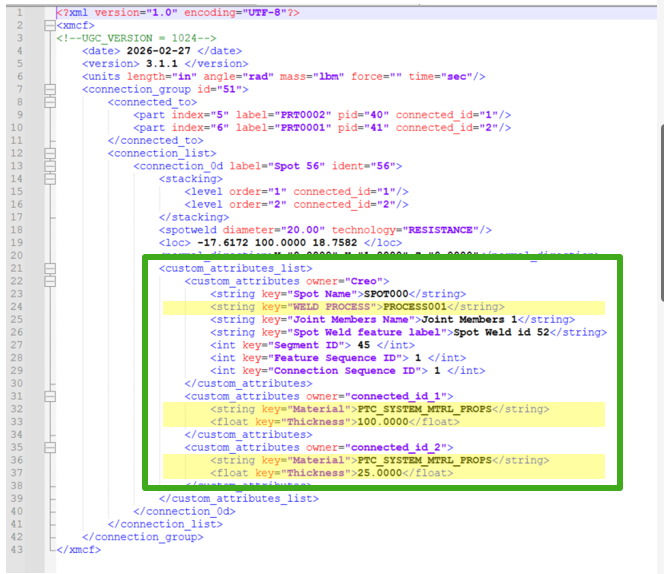

In Creo+, more spot weld information is exported in the xMCF file in Creo Welding. The additional information can be found under the custom attributes section of the xMCF export file, and includes the following:
• Weld process
• Weld material
• Thickness of the welded part
When you export the weld material, make sure to export the material used by each body of the referenced component. You can weld parts made of different materials, so the materials of each participating part must be retrieved and exported.
Benefits
Makes more spot weld information available downstream
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
