Welding: Stacking
Creo+
User Interface Location: Click >
Welding >
Spot Weld.
Welding > Spot Weld.Videos
If the video does not play, watch it on YouTube.
Description
Creo Welding has been enhanced to calculate stacking for each spot weld instance.

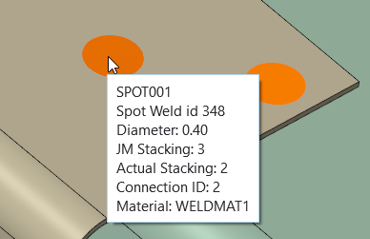

You can view the stacking calculation when you hover over a spot weld instance in the graphics window:

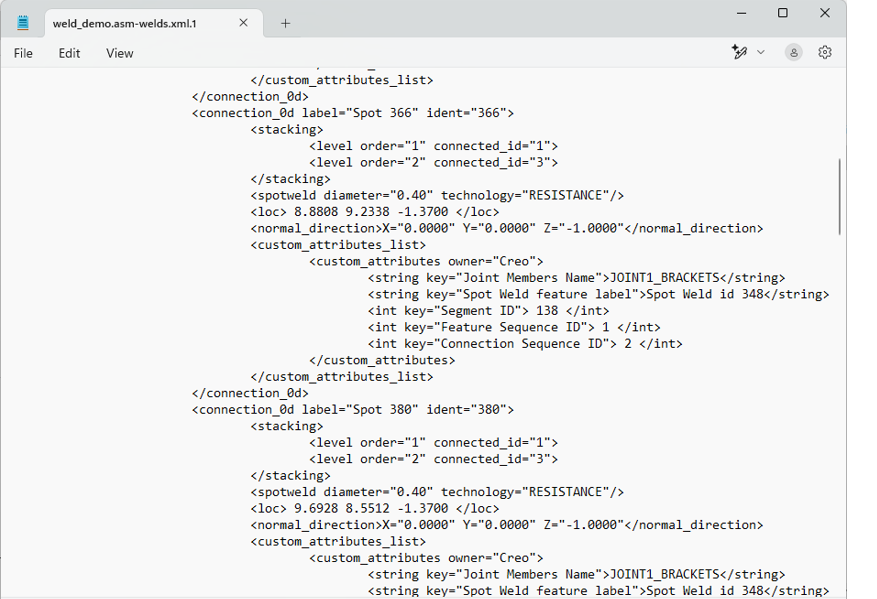

Stacking information is provided for the xMCF format, and it can be exported:
Stacking calculation is used to validate the spot welds.
The following stacking information is provided:
• Label
• Parent feature
• Diameter
• Joint Members stacking
• Calculated stacking
• Sequence ID
• Material
Stacking calculation was not available in previous releases.
Benefits
• Full support for xMCF standards when exporting spot weld information
• Provides validation information for spot welds
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
