Box Selection to Select Points in Style Curve Edit
Creo+
User Interface Location: Click
Style >
Curve Edit.
Style > Curve Edit.Videos
If the video does not play, watch it on YouTube.
Description
In Style, box selection has been added to the Curve Edit tool to help you select curve points.

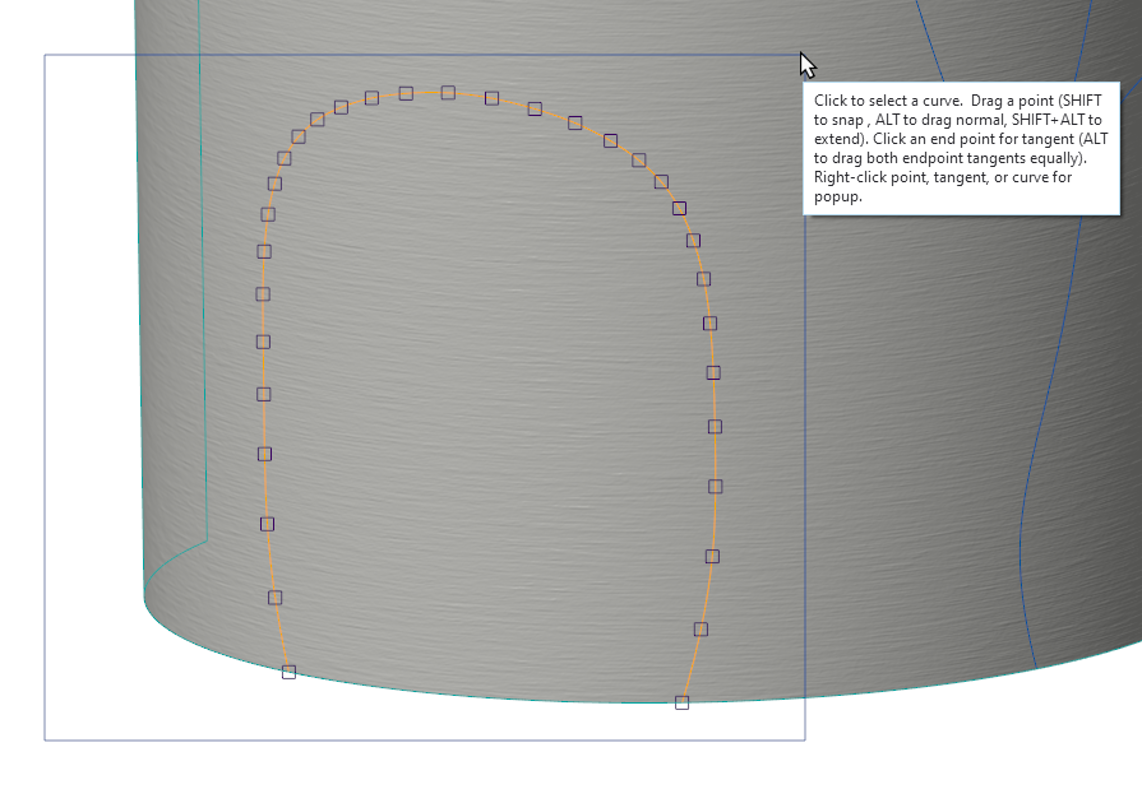

• You will now be able to use your mouse to drag a box to select a set of points all at once, without the need to select them individually.
• Only points on curves that were added as references in the Curve Edit tool will be available for box selection.

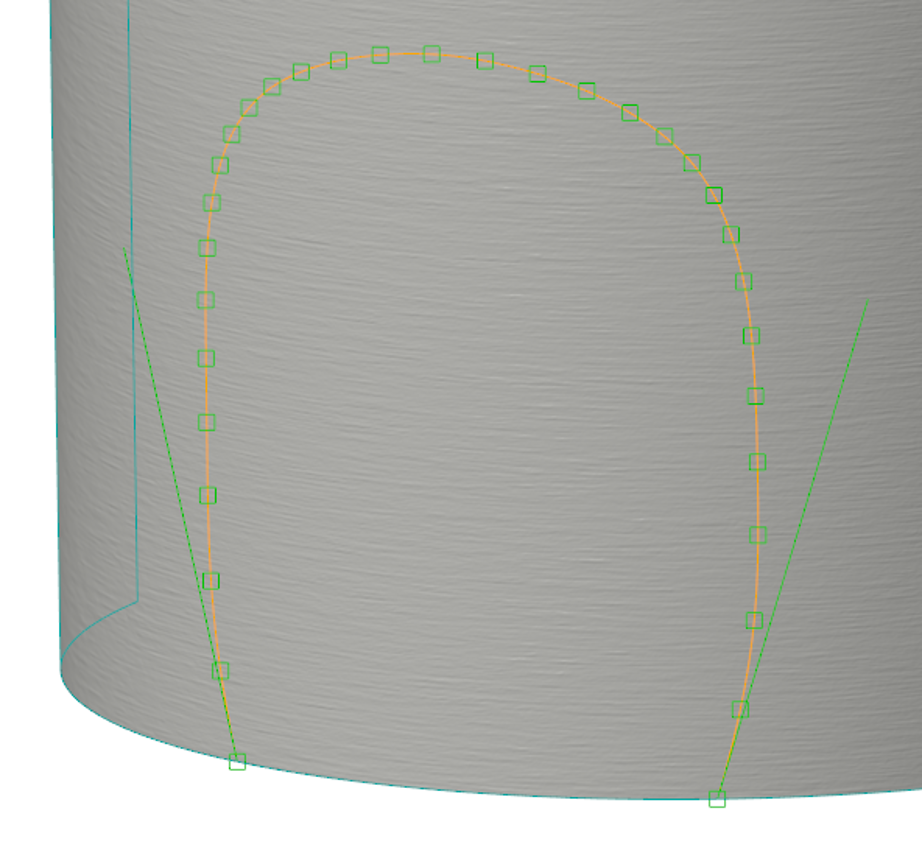

Dragging a box over a set of points will automatically select the points, allowing you to manipulate them. Pressing the CTRL key and dragging a box will automatically:
• Select points that fall in the box and are not yet selected
• Deselect already selected points
Benefits
Easily select the desired points to modify a curve.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
