Productivity and Usability Enhancements
Creo+
User Interface Locations:
• > >
• >
• >
Description
The following enhancements were made in Sketcher:
• Mid-point line tool—A new line tool that allows you to create a line by selecting the center and dragging outward. The line created is symmetric about the selected center point.

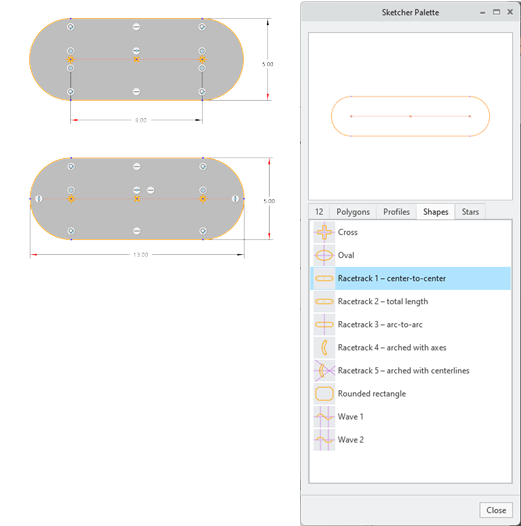

• Enhanced Shape Palette—The out-of-the-box shape palette in Sketcher includes additional racetrack shapes that offer various dimensioning schemes and axes creation in 3D.
• An enhanced Sketch setup dialog box—The Sketch setup dialog box now includes the typical yellow and red dot indicators to communicate the reference status along with related what’s wrong information. Right-click the collector and click What’s wrong to display information.
Benefits
Increased usability and productivity.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
