Creo Simulation Live has support for ECAD Assemblies
Creo+
User Interface Location: Open an ECAD assembly and click the Live Simulation tab to run a Simulation Live study.
Use the
button on the Quick Access Toolbar to toggle the display of ECAD context data.
button on the Quick Access Toolbar to toggle the display of ECAD context data.Videos
If the video does not play, watch it on YouTube.
Description

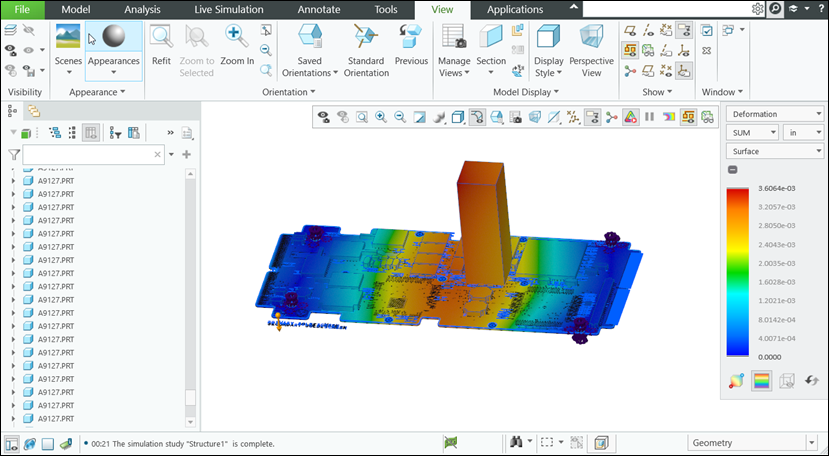

Creo Simulation Live now supports ECAD assemblies. In the past Creo Simulation Live only supported design assemblies.
All existing functionality in Creo Simulation Live is supported. You can toggle ECAD context data using button on the Quick Access toolbar. This feature provides a more robust default contact tolerance due to small parts and large boards.
button on the Quick Access toolbar. This feature provides a more robust default contact tolerance due to small parts and large boards.Benefits
This enhancement provides the following benefits:
• Extends the Creo Simulation Live usage to more users.
• Automatically creates contacts.
• Provides real time simulation results
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
