Modelcheck Support for Inseparable Assemblies
Creo+
User Interface Location: > >
Videos
If the video does not play, watch it on YouTube.
Description

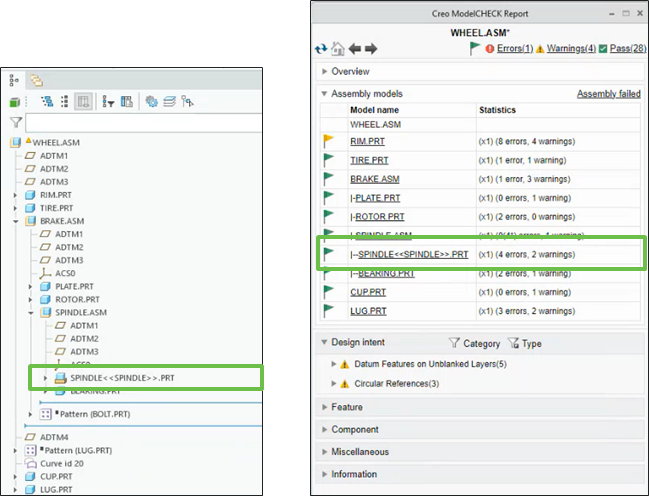

The Modelcheck infrastructure has been enabled to support inseparable assemblies in the Modelcheck report.
This enhancement introduces the following new checks :
• MC_MRG_EMBED_COMP_ERR config_init_option—Integrates embedded component error counts into the parent assembly parameter for seamless error management. This check is turned off by default.
• MC_MRG_COMP_ERR_IN_TOP_ASM—Merges component error counts into the top assembly error parameter. This check is turned off by default.
• MC_RUN_ON_ASM_COMP—Runs Modelcheck in intersected components. This check is turned off by default.
Benefits
These checks provide enhanced capability to review models with inseparable assemblies.
Additional Information
Tips: | Certain checks are turned Off by default and must be configured to Y to enable their functionality. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None |
