GD&T Advisor Enhancement: Constrain a Shaft or Simple Hole with Profile and Position (ISO GPS)
Creo+
User Interface Location: In GD&T Advisor Dashboard, select > .
Description

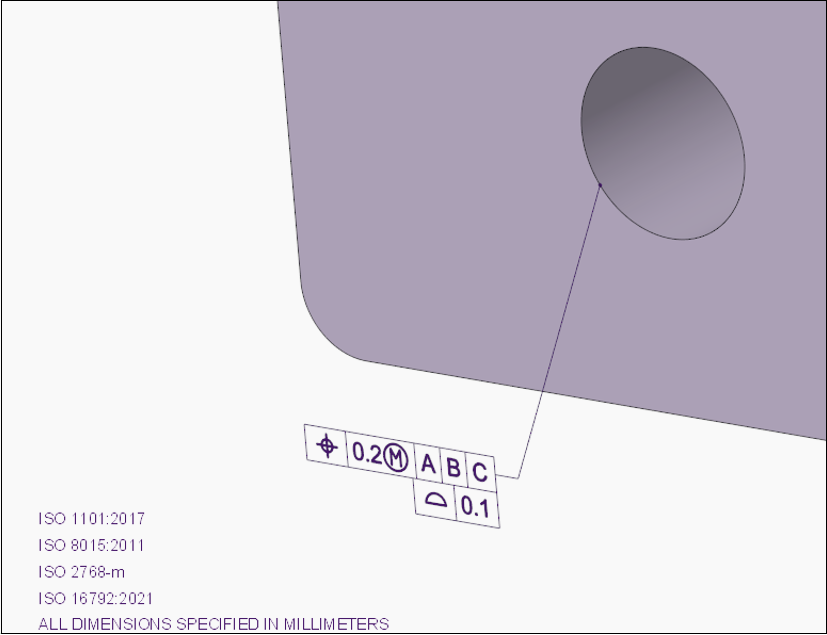

You can now constrain simple holes and shafts using a combination of position and surface profile tolerances. This option is available when using the “Basic Size” schema for ISO models.
Previously, GD&T Advisor did not support this type of definition. However, it was supported in the standard.
Benefits
This enhancement improves compliance with the ISO GPS standard.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | ASME models already support the same combination. |
