Selected Surface Regions are Upgraded to Surfaces
Creo+
User Interface Location: > >
Reference
ReferenceVideos
If the video does not play, watch it on YouTube.
Description
With this enhancement, the processing of selected surface regions has been improved by upgrading them to their parent surfaces whenever possible.
The enhancements include:
• Enhanced regeneration of the surface sets when all surface regions of a surface are included in the selection set.
◦ In the Datum Reference feature, selected surface regions are now upgraded to surfaces when all regions of a surface are included in the selection set. Previously, surface regions could only be used by the Flexible Modeling features and the Datum Reference feature. With this enhancement, upgrading surface regions to surfaces makes the surface collection eligible for a broader range of features.
◦ In the Datum Reference feature, a geometry check is created if a selection set contains surface regions that cannot be upgraded.
• In Flexible Modeling feature collectors, the surface regions are upgraded to surfaces for all single region surfaces.

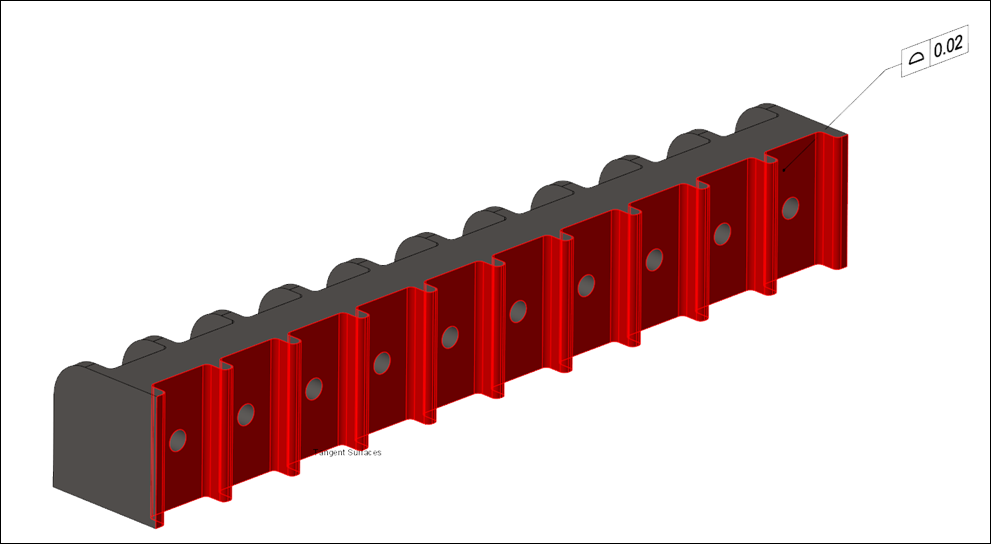

Surface region upgrade to surfaces is shown in the following image.
Benefits
Improved productivity for use cases that involve tangent surface selection, such as the definition of semantic references for Model-Based Definition.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
