Handling Bend Radius Violations
Creo+
Videos
If the video does not play, watch it on YouTube.
Description
Bend radius violations are now handled without removing cable or wire geometry from the display.
This enhancement improves how bend radius violations are displayed and managed by:
• Keeping wire geometry visible when a minimum bend radius is violated.

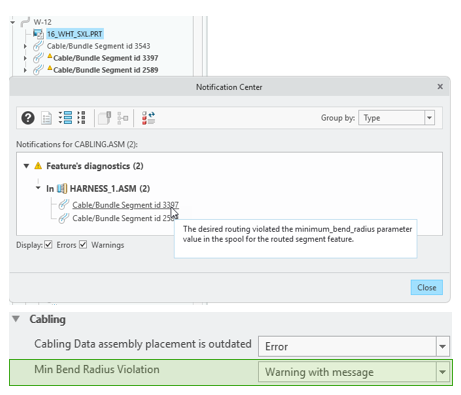

• Reporting violations as warnings in the Notification Center.
• Providing a warning display control in Notification Center options.
Benefits
Bend radius issues can be identified and corrected without losing visual feedback.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
