Feature Presets for Data Sharing Features
Creo+
User Interface Location: In the user interface of data sharing features.
Videos
If the video does not play, watch it on YouTube.
Description
You can now define and manage sets of predefined feature options for data sharing feature such as:
• (External) Copy Geometry
• Merge and Inheritance
• Shrinkwrap
◦ The defined default preset is applied after the reference model is selected.

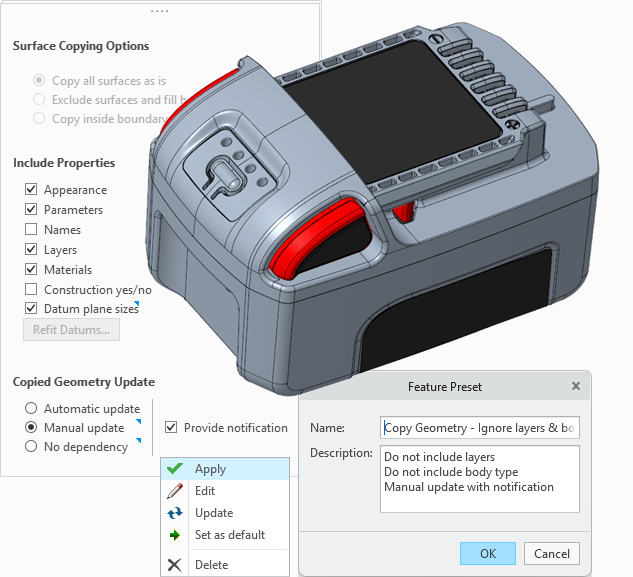

Presets capture options such as properties selected for propagation and selected settings for geometry update control. To support this, there is improved and aligned workflow for the update control No Dependency option that is now applied when the feature is completed.
Configuration options such as copy_geometry_method and new_cg_update_state only set default values for system settings and are not applied for user-defined presets.
Benefits
Ability to control default settings for selected feature options and to quickly switch between favorite feature settings.
Additional Information
Tips: | None. |
Limitations: | Reference type (local/external) is not captured in the preset definitions. Feature actions such as Edit Placement or context are not captured as well. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
