Creo Elements/Direct Cabling Tutorial 8: Step 3 of 8
Route the cable
Now you can route a cable along the profile.
To route a cable along a profile,
1. Click
Cabling and then, in the
Manual Routing group, click the arrow next to
Wire.
2. Click
Profile Wire. The
Create Cable dialog box opens.
3. Click Wire. The Select_Cabling_Type dialog box opens.
4. Click Cable or Wire and select the C6x1.0 cable.
5. Click Workplane in the Create Cable dialog box.

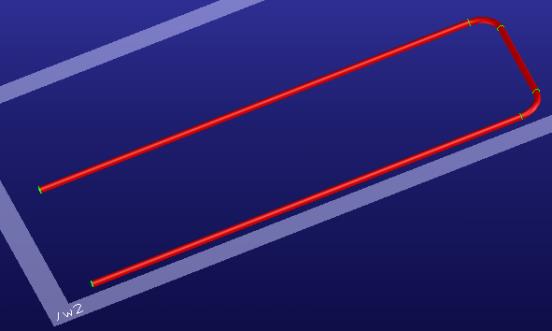

6. Select the profile's workplane. This creates a new cable using the 2D profile:
7. Turn off the In WP and On Curve options and note the changes in placement of the new cable.
8. Click
OK to complete the operation.
9. Use the Delete visual wires command in the > group to delete the cables' 3D representations.
