Example of Product Line Management Using Streams

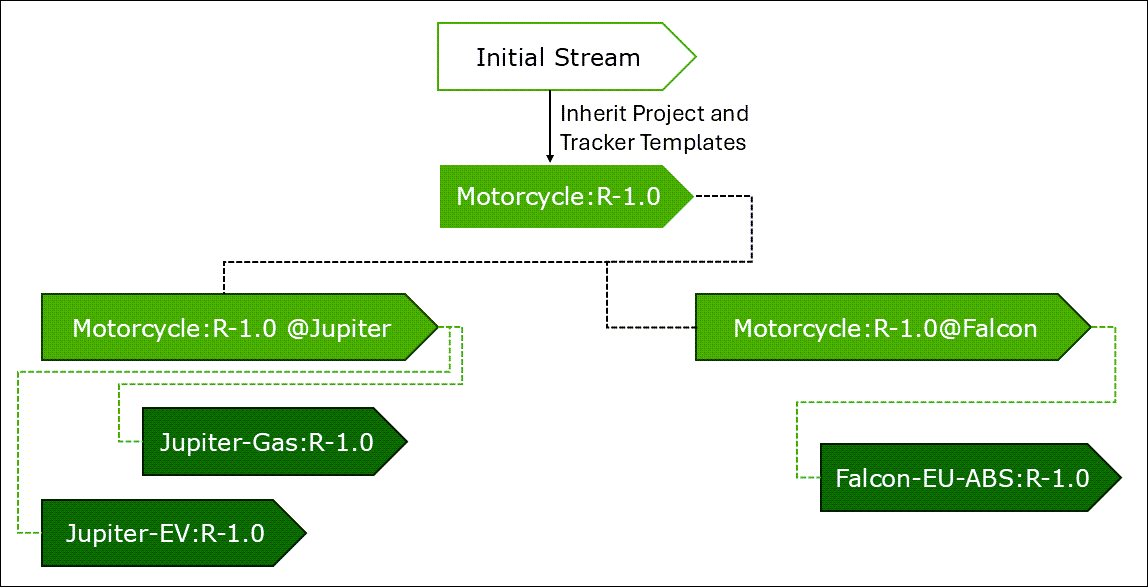

The following illustration shows the streams structure for the development of a product-line that has three products.
Initial stream—Contains project and tracker templates that follow naming conventions, and defined configuration management permissions.
Motorcycle product-line release-1.0 stream–Contains all possible features for the first motorcycle release. For example, 250cc, 350cc, EV, ABS, and regions.
Transformed stream—Contains the product-line stream that is transformed for a particular product.
Product release stream—Contains motorcycle products. For example, Jupiter EV Release-1.0, Jupiter Gas Release-1.0, and Falcon EU ABS Release-1.0.
Change flow
◦ Changes flow from the product-line release stream to the transformed stream and then to the product release stream.
◦ Every stream derives structure and configuration from the stream whose changes flow into it.
Stream roles
◦ Initial stream—Project creation, tracker configuration and template source.
◦ Release stream—Configuration for a particular release of a product, library, or product-line.
◦ Product-line stream—150% configuration containing items for multiple products.
◦ Transformed stream—100% product configuration.
◦ Product stream—Tailored configuration for a product.
Change-flow direction
◦ Changes flow from the baseline of a source stream to a target stream
Benefits
This architecture supports:
◦ Reuse
◦ Controlled divergence
◦ Parallel development
◦ Variant-specific customization
