Property Setting Examples for SVG and Raster Files
 |
For more information on the latest version compatibility, see Arbortext Content Delivery Release Advisior Page.
|
The following sections discuss the property settings for different SVG file formats.
Creo Illustrate SVG Example

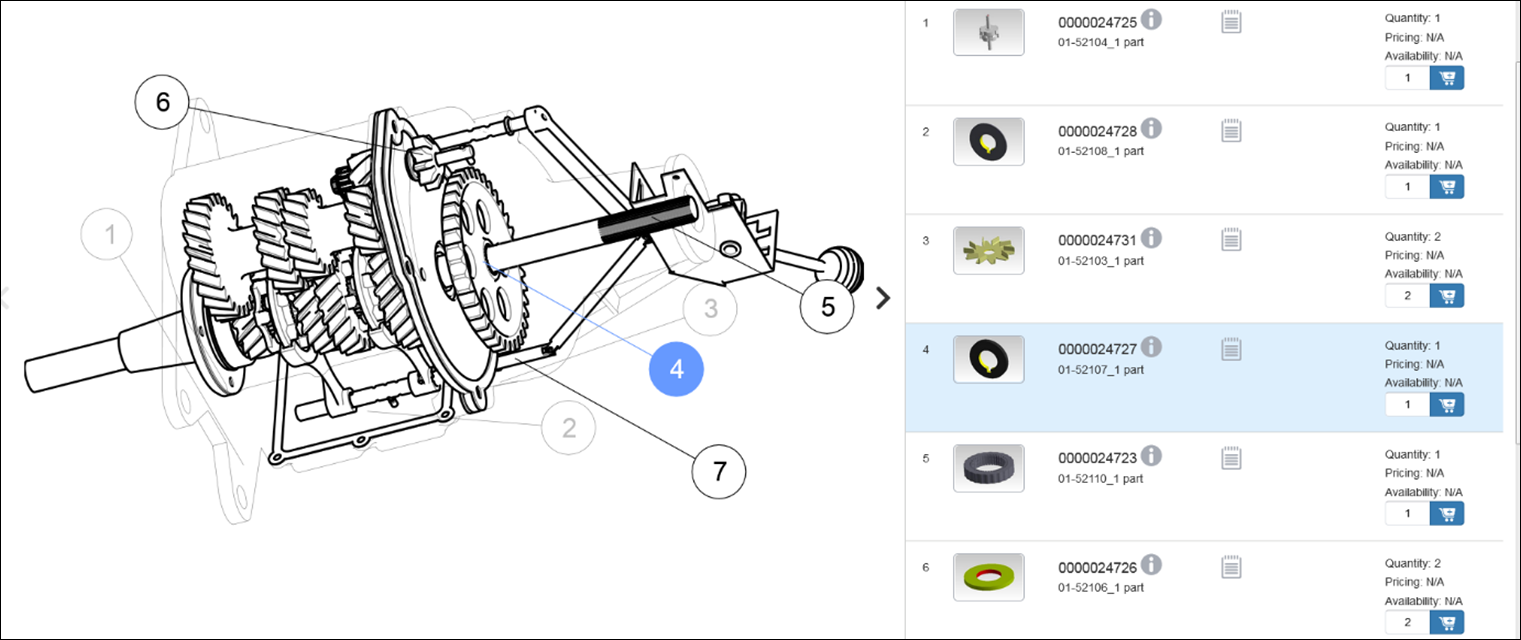

The following Creo Illustrate SVG image includes callouts when displayed in Arbortext Content Delivery:
In the Creo Illustrate SVG image, the class =”callout callout_6” attribute is used to call the callout_6 callout:
...<g id="ID_1007" class="callout callout_6">
<line stroke-width="0.13" x1 ="53.055" y1="10.598" x2="18.321" y2="3.593"/>
<path stroke-width="0.13" fill ="#FFFFFF" d="M21.914"/>
<text x="17.487" y="4.855" stroke="none" fill="#000000" font-family="'Arial Unicode MS'" font-size="3.528">6
</text>
</g>...
To support hotspots for callouts in the Creo Illustrate SVG image, set the com.ptc.sc.svg.callout.tagname property in the sc.wt.properties.xconf file as follows:
<Property name="com.ptc.sc.svg.callout.tagname"
default="Class=callout_,id=hotspot_” overridable="true"/>
ISODraw Raster Example

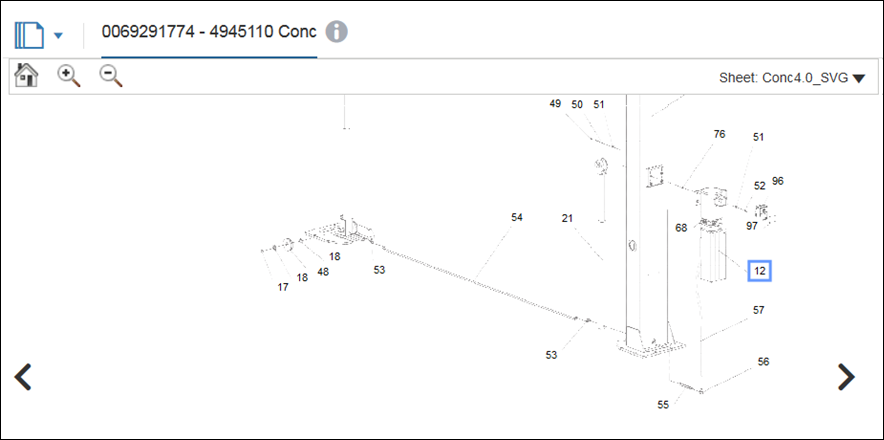

The following ISODraw raster SVG image includes callouts when displayed in Arbortext Content Delivery:
In the ISODraw raster SVG image, the class="callout callout_17" attribute is used to call the callout_17 callout:
...<g class="callout callout_17">
<path stroke="none" fill="#FFFFFF" d="M13.105 7.355L20.484 7.355 20.484 0.82
13.105 0.82 13.105 7.355z"/>
<text x="14.833" y="5.355" stroke="none" fill="#000000" font-family="'Arial'
" font-size="3.528">
<desc>17</desc>17</text>
</g>
...
To support hotspots for callouts in the ISODraw raster SVG image, set the com.ptc.sc.svg.callout.tagname property in the sc.wt.properties.xconf file as follows:
<Property name="com.ptc.sc.svg.callout.tagname"
default="class=hotspot_,class=callout_,id=hotspot_,apsname=" overridable="true"/>
ISODraw Vector Example

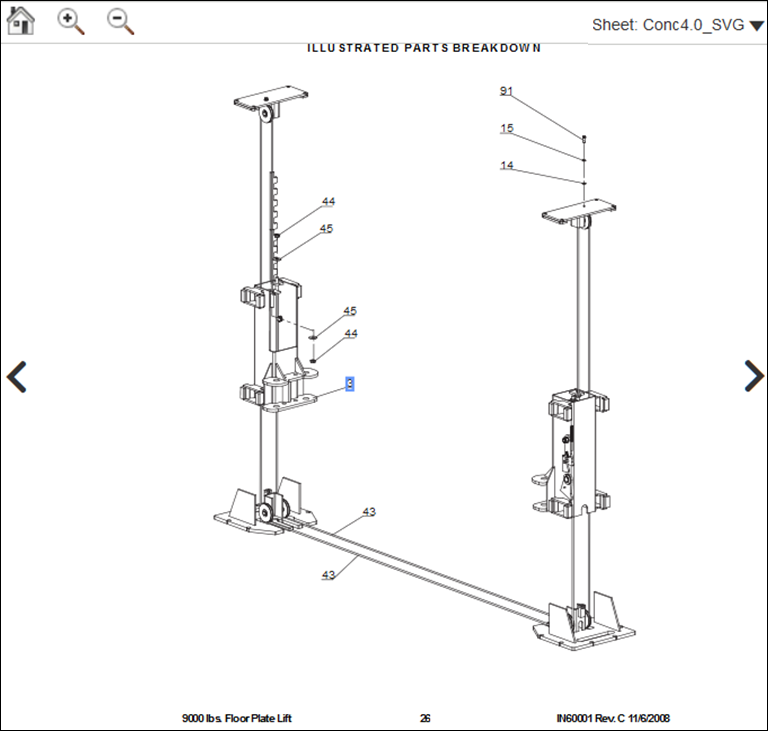

The following ISODraw vector SVG image includes callouts when displayed in Arbortext Content Delivery:
In ISODraw vector SVG file, the class="hotspot hotspot_45" code is used to call the hotspot_45 callout:
<path id="AUTOID_5253" class="hotspot hotspot_45" fill="black" stroke="black"
visibility="hidden"
pointer-events="all" d="M51.222 71.515L 55.927 71.515L 55.927 66.929L 51.222 66.929L
51.222 71.515zM60.07
102.206L 64.775 102.206L 64.775 97.62L 60.07 97.62L 60.07 102.206z"/>
To support hotspots for callouts in the ISODraw vector SVG image, set the com.ptc.sc.svg.callout.tagname property in the sc.wt.properties.xconf file as follows:
<Property name="com.ptc.sc.svg.callout.tagname"
default="class=callout,class=hotspot_,id=hotspot_,apsname=" overridable="true"/>
Larson SVG Example

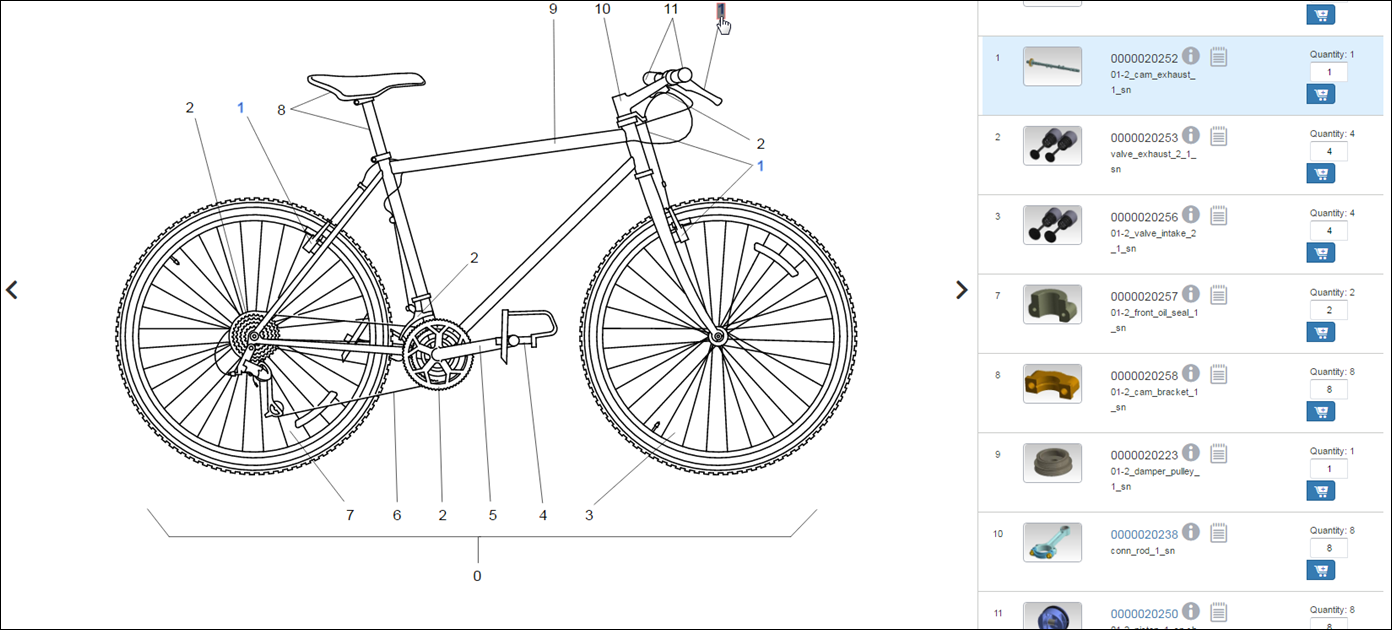

The following Larson SVG image includes callouts when displayed in Arbortext Content Delivery:
In the Larson SVG image, the apsname="1" attribute is used to call the 1 callout:
...<g id="grobject.hot001" apsname="1">
<g transform="translate(152.08,137.25)">
<g font-family="Arial,sans-serif" font-size="16.90" fill="rgb(0,0,0)">
<text x="0" y="0" textLength="10.00" lengthAdjust="spacingAndGlyphs">1</text>
</g>
</g>
...
To support hotspots for callouts in the Larson SVG image, set the com.ptc.sc.svg.callout.tagname property in the sc.wt.properties.xconf file as follows:
<Property name="com.ptc.sc.svg.callout.tagname"
default="apsname=" overridable="true"/>
