附件
“附件”是“项列表”组件的预定义配置，用于显示附件。“附件”会显示特定更改请求的附件。对于每个附件，“附件”都会显示可通过配置进行选取的属性。默认属性有“文件名”、“文件大小”、“说明”、“上次修改时间”、“修改者”和“外部位置”。文件名也会显示文件类型。您可以单击文件名来下载附件或导航至链接的网页。如果通过配置或定制方式移除文件名属性，则不会提供任何可用的下载链接。
“附件”具有与“项列表”类似的搜索、排序、筛选、导出和恢复默认值等功能。默认情况下，其中不包括“导出”操作，但可以通过配置来启用。

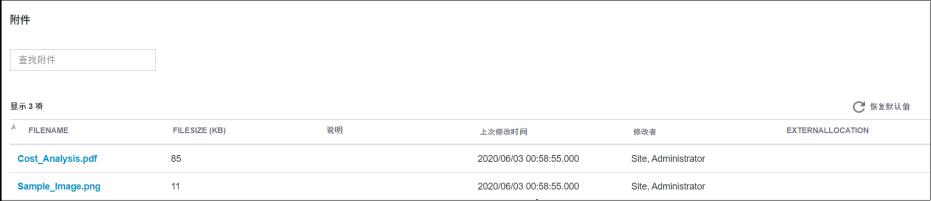

下面是一个示例图像，其中显示了“附件”的预定义配置：
绑定属性
| 对于“附件”，输入绑定属性支持 PTC.Workflow.WorkItem 和 PTC.ChangeMgmt.ChangeRequest 对象类型。 selectedItems 绑定属性的输出中包含具有 PTC.ContentItem 对象类型的项。 |
配置属性
属性名称 | 说明 | 属性类型 | 默认值 | 必需或可选 |
attributes | 接受 PTC.ContentItem 对象类型的属性。 | | 不适用 | 必需 |
defaultSortField | 接受 PTC.ContentItem 对象类型的属性。 | | 不适用 | 可选 |
filterFields | 接受 PTC.ContentItem 对象类型的属性。 | | 不适用 | 可选 |
配置示例
{
"selectionType": {
"selectedKey": "none"
},
"waitForInput": {
"value": true
},
"actionBarConfiguration": {
"value": {
"actionBarConfigurationJSON": {
"value": ""
}
}
},
"defaultSortFields": {
"selectedValues": {
"data": [
{
"itemListsData": [
{
"items": [
{
"additionalData": {
"itemListDefaultSortFieldDefinition": {
"defaultSortDirection": {
"selectedKey": "asc"
}
}
},
"id": "FileName"
}
],
"objectType": "PTC.ContentItem"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
]
}
},
"attributes": {
"selectedValues": {
"data": [
{
"itemListsData": [
{
"items": [
{
"id": "FileName",
"ordinal": 0
},
{
"id": "FileSize",
"ordinal": 1
},
{
"id": "Description",
"ordinal": 2
},
{
"id": "LastModified",
"ordinal": 3
},
{
"id": "ModifiedBy",
"ordinal": 4
},
{
"id": "ExternalLocation",
"ordinal": 5
}
],
"objectType": "PTC.ContentItem"
}
],
"adapter": {
"instanceName": "windchill",
"thingName": "PTC.WCAdapter"
}
}
]
},
"inTailoring": true
},
"label": {
"value": "[[PTC.Nav.Attachments.UILabel]]"
},
"showExportAction": {
"value": false
},
"enableSearch": {
"additionalData": {
"itemListSearchDefinition": {
"searchHintText": {
"value": "[[PTC.Nav.Attachments.FindHintText]]"
}
}
},
"value": true
},
"maxNumberOfRowsInGrid": {
"inTailoring": true,
"value": 50
}
}
自定义服务
除配置外，每个组件还支持通过扩展其业务逻辑来自定义组件。每个组件的业务逻辑在事物模板中都包含可改写服务，您可以对这些服务进行扩展和改写。下表对此组件的可改写服务进行了详细说明。
有关每个服务的返回值和参数的示例，请参阅
自定义服务的输入/输出示例。
名称 | 说明 |
GetConfigurations | 返回“附件”的可用配置。 参数：无 返回：JSON |
GetImplementationLabel | 返回此组件的本地化名称或可用于获取此本地化名称的标记。此本地化名称显示在 Mashup Builder 用户界面中。 参数：无 返回：字符串 |
GetItems | 返回在输入中指定的更改请求项的附件。 参数： input (可选) - CCO 格式的 JSON，其中包含要从后端系统获取的数据的输入 ID，以及后端系统的适配器信息。 configuration (必需) - JSON，其中包含从“定制管理器”资源获得的最终合并配置。 |
DefHookMaxRowsProperties | 返回要在栅格区域中显示的最大行数的属性。 参数：无 返回：JSON |
实施定义
{
"array":[
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"directDefinition":[
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.Textbox"
},
"mandatory":false,
"key":"actionBarConfigurationJSON"
}
],
"componentDefinition":{
"thingName":null,
"allowSelection":false
}
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.DefinitionGroup"
},
"mandatory":false,
"key":"actionBarConfiguration"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"additionalDefinition":[
{
"directDefinition":[
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.Textbox"
},
"mandatory":false,
"key":"fieldTitleOverride"
}
],
"key":"itemListAttributesDefinition"
},
{
"directDefinition":[
],
"key":"implementationAttributesDefinition"
}
],
"updateServiceName":"",
"minimumSelectedAttributes":null,
"supportedTypes":{
"data":[
{
"itemListsData":[
{
"selectionGroupIds":[
"ATT"
],
"objectType":"PTC.ContentItem"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring":false
},
"addServiceName":"",
"maximumSelectedAttributes":null
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.AttributesSelector"
},
"mandatory":true,
"key":"attributes"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"additionalDefinition":[
{
"directDefinition":[
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"options":[
{
"description":"Sort column in ascending order",
"label":"[[PTC.Nav.ItemList.SortOrder.Asc]]",
"key":"asc"
},
{
"description":"Sort column in descending order",
"label":"[[PTC.Nav.ItemList.SortOrder.Dsc]]",
"key":"dsc"
}
],
"updateServiceName":null,
"addServiceName":null
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.RadioButton"
},
"mandatory":false,
"key":"defaultSortDirection"
}
],
"key":"itemListDefaultSortFieldDefinition"
}
],
"updateServiceName":"",
"minimumSelectedAttributes":null,
"supportedTypes":{
"data":[
{
"itemListsData":[
{
"selectionGroupIds":[
"ATT"
],
"objectType":"PTC.ContentItem"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring":false
},
"addServiceName":"",
"maximumSelectedAttributes":null
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.AttributesSelector"
},
"mandatory":false,
"key":"defaultSortFields"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"default":true,
"true":{
"additionalDefinition":[
{
"directDefinition":[
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.Textbox"
},
"mandatory":false,
"key":"searchHintText"
}
],
"key":"itemListSearchDefinition"
}
],
"label":"[[PTC.AccessApp.Yes]]"
},
"false":{
"additionalDefinition":[
],
"label":"[[PTC.AccessApp.No]]"
}
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.Toggle"
},
"mandatory":false,
"key":"enableSearch"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"additionalDefinition":[
{
"directDefinition":[
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"dynamicallySetTypeServiceName":"GetFilterTypeDefinitionForFilterField",
"type":{
"enum":{
"options":[
],
"updateServiceName":null,
"dynamicallySetOptionsServiceName":null,
"addServiceName":null,
"multiSelect":null
}
}
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.FieldFilter"
},
"mandatory":false,
"key":"defaultSelectedFilterValues"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.Textbox"
},
"mandatory":false,
"key":"filterLabelOverride"
}
],
"key":"itemListFilterFieldDefinition"
}
],
"updateServiceName":"",
"minimumSelectedAttributes":0,
"supportedTypes":{
"data":[
{
"itemListsData":[
{
"selectionGroupIds":[
"ATT"
],
"objectType":"PTC.ContentItem"
}
],
"adapter":{
"instanceName":"windchill",
"thingName":"PTC.WCAdapter"
}
}
],
"allowSubsetForTailoring":false
},
"addServiceName":"",
"maximumSelectedAttributes":1
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.AttributesSelector"
},
"mandatory":false,
"key":"filterFields"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"directDefinition":[
],
"componentDefinition":{
"thingName":null,
"allowSelection":false
}
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.DefinitionGroup"
},
"mandatory":false,
"key":"implementationConfiguration"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.Textbox"
},
"mandatory":false,
"key":"label"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"minValue":1,
"default":50,
"maxValue":500,
"step":10
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.Number"
},
"mandatory":true,
"key":"maxNumberOfRowsInGrid"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"options":[
{
"description":"Disallow items selection",
"label":"[[PTC.Nav.ItemList.SelectionType.None]]",
"key":"none"
},
{
"description":"Allow single item selection",
"label":"[[PTC.Nav.ItemList.SelectionType.Single]]",
"key":"single"
},
{
"description":"Allow multiple items selection",
"label":"[[PTC.Nav.ItemList.SelectionType.Multiple]]",
"key":"multi"
}
],
"updateServiceName":null,
"addServiceName":null
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.RadioButton"
},
"mandatory":false,
"key":"selectionType"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"default":true,
"true":{
"additionalDefinition":[
],
"label":"[[PTC.AccessApp.Yes]]"
},
"false":{
"additionalDefinition":[
],
"label":"[[PTC.AccessApp.No]]"
}
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.Toggle"
},
"mandatory":false,
"key":"showExportAction"
},
{
"property":{
},
"value":{
"initializationData":{
"version":"1.0.0",
"constraints":{
},
"properties":{
"default":false,
"true":{
"additionalDefinition":[
],
"label":"[[PTC.AccessApp.Yes]]"
},
"false":{
"additionalDefinition":[
],
"label":"[[PTC.AccessApp.No]]"
}
}
},
"elementVersion":"1.0.0",
"elementName":"PTC.Nav.DynamicForm.Toggle"
},
"mandatory":false,
"key":"waitForInput"
}
]
}
